Make A Dead Easy Mute for the Moon Bridge

There are all kinds of mutes available for banjos. Some of them go over the bridge, some of them go under the bridge, and some of them go around the bridge. You can also make a mute by stuffing a rag into the pot or under the strings.

But the Moon bridge presents a problem because it is curved. Many of the commercial mutes just don't work on it. In case you are not familiar with the Moon bridge, it looks like this:

Moon

Moon Bridge

Here is a closeup of it in case you can't see it very well in that photo:

Moon

Closeup of the Moon Bridge

In the past, I have muted the banjo by stuffing a cloth under the strings, but that changes the feel and the sound of the instrument. It makes it go "Thump thump thump" and destroys the resonance. It makes it quiet, but not very much fun to play.

There are some really good commercial banjo mutes out there that are made of a metal bar of some sort that fits over the bridge. The weight of the bar keeps the bridge from vibrating, so the sound that comes out is muted, and the resonance of the instrument is not destroyed. Unfortunately, those mutes are straight and therefore will not fit onto the Moon bridge, which is curved.

In one case, I read some advice that said you should just buy the straight mute ( about $35 ) and then bend it to fit the bridge.

Yeah. Right!

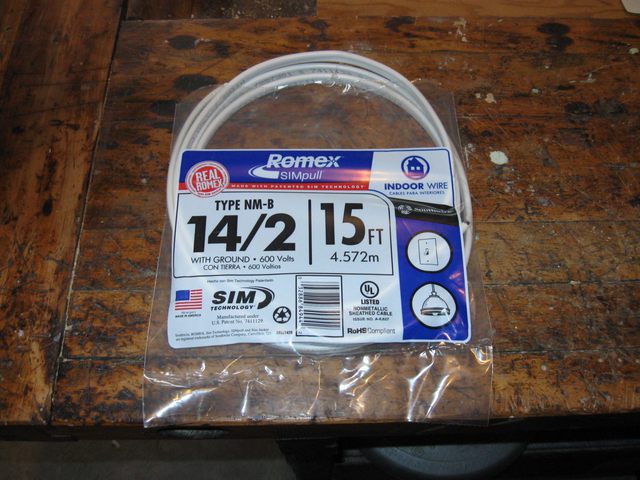

But that gave me an idea. So I ran off to the hardware store and I bought this.

Wire

Romex Wire

That is normal electrical wire for wiring in houses and such. According to the information on the package it is fifteen feet of 14 guage, insulated, two conductor, solid core wire. It actually has three wires in it, but because of the strange ways that hardware store items are labeled it is called 2 wire Romex. I guess they ignore the ground wire when they count. But hey, that isn't our problem here.

I paid $9.26 for the entire thing at Home Depot®

Disclaimer: I am not advocating or selling for Home Depot. That is just where I got it. So if you go there and get disappointed, don't blame me.

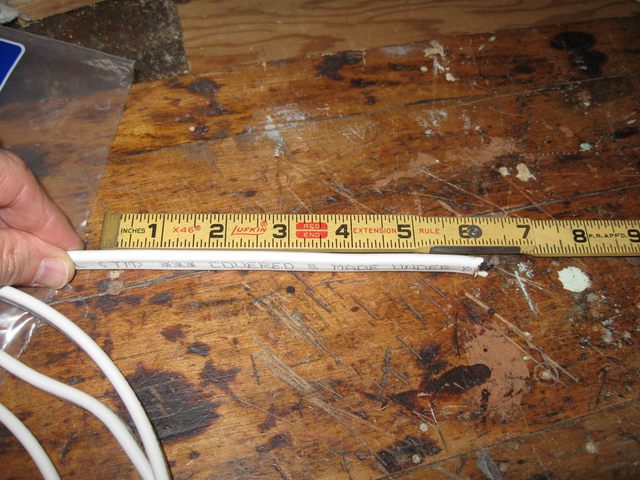

Anyway, I measured out 6 inches of the stuff

6 inches

Six Inches of Wire

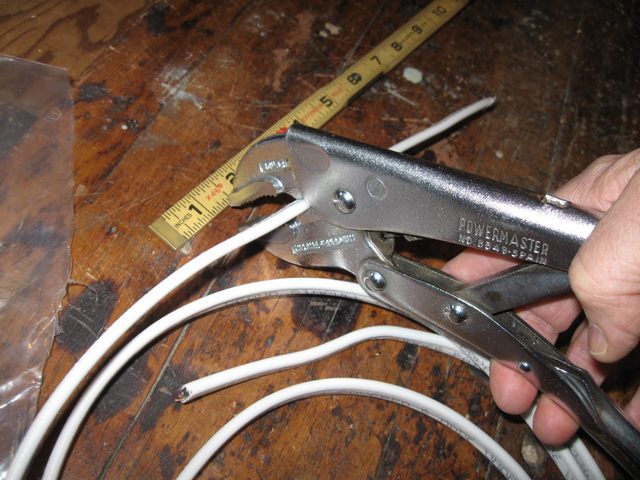

Then I cut it off with my Vise Grips® (Similar disclaimer, but I don't think that they are real Vise Grips® anyway.)

Cut

Cut the Wire

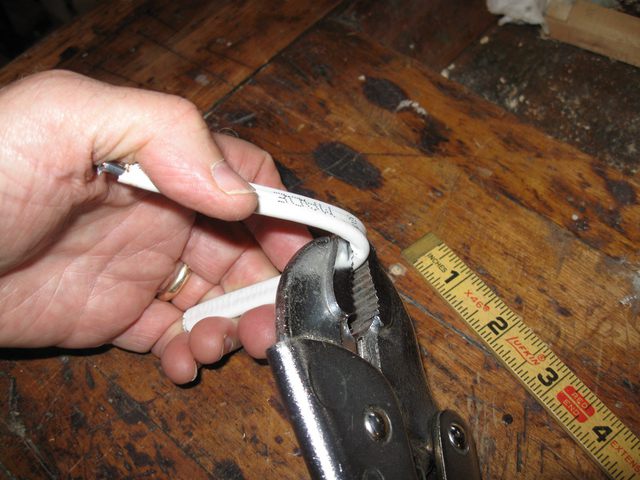

Bend it over double in the middle.

Bend

Cut the Wire

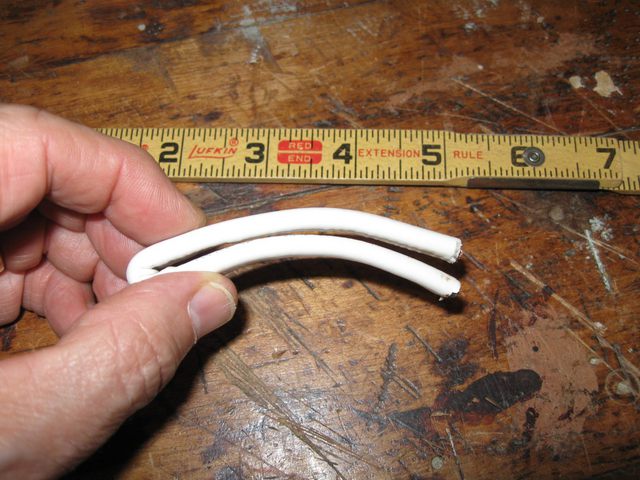

Once the wire is bent over double, you can easily bend it into the gentle curve of the bridge.

Curve

Curve the Wire

So here is how it works. You take the mute in your hand.

Mute

The Mute

Slip it gently onto the bridge.

Onto the bridge

Put It Onto the Bridge

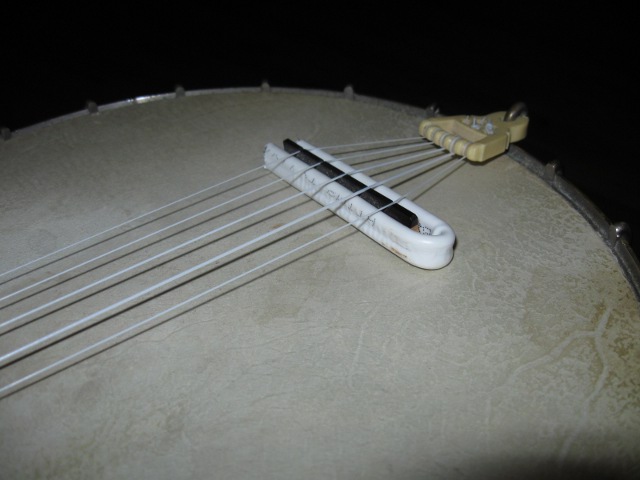

And there it is, ready to use.

Ready

Ready to Play

I had to mess around with the curve of the wire a few times to get it right so that it didn't push the banjo out of tune or buzz. But once I got it working, it just slips onto the bridge and works. I put it onto the bridge from the top, but you can also put it on from the bottom as well.

From the Bottom

From the Bottom

It seems to work equally well regardless.

This device also works on a straight bridge, as you can see below where I have put one on my Fairbanks & Cole A-scale banjo:

Straight

For a Straight Bridge

So that is it. Now you know how to make a banjo mute for about.... let's see.... 15 feet of wire... and I used 6 inches of it... so that is about 30 mutes... for $9.26.. well, OK with Mass sales tax that comes to about $9.84... so each mute would cost... about 33 cents each. That is about 1/100 of what a commercial mute would cost. Not bad.
